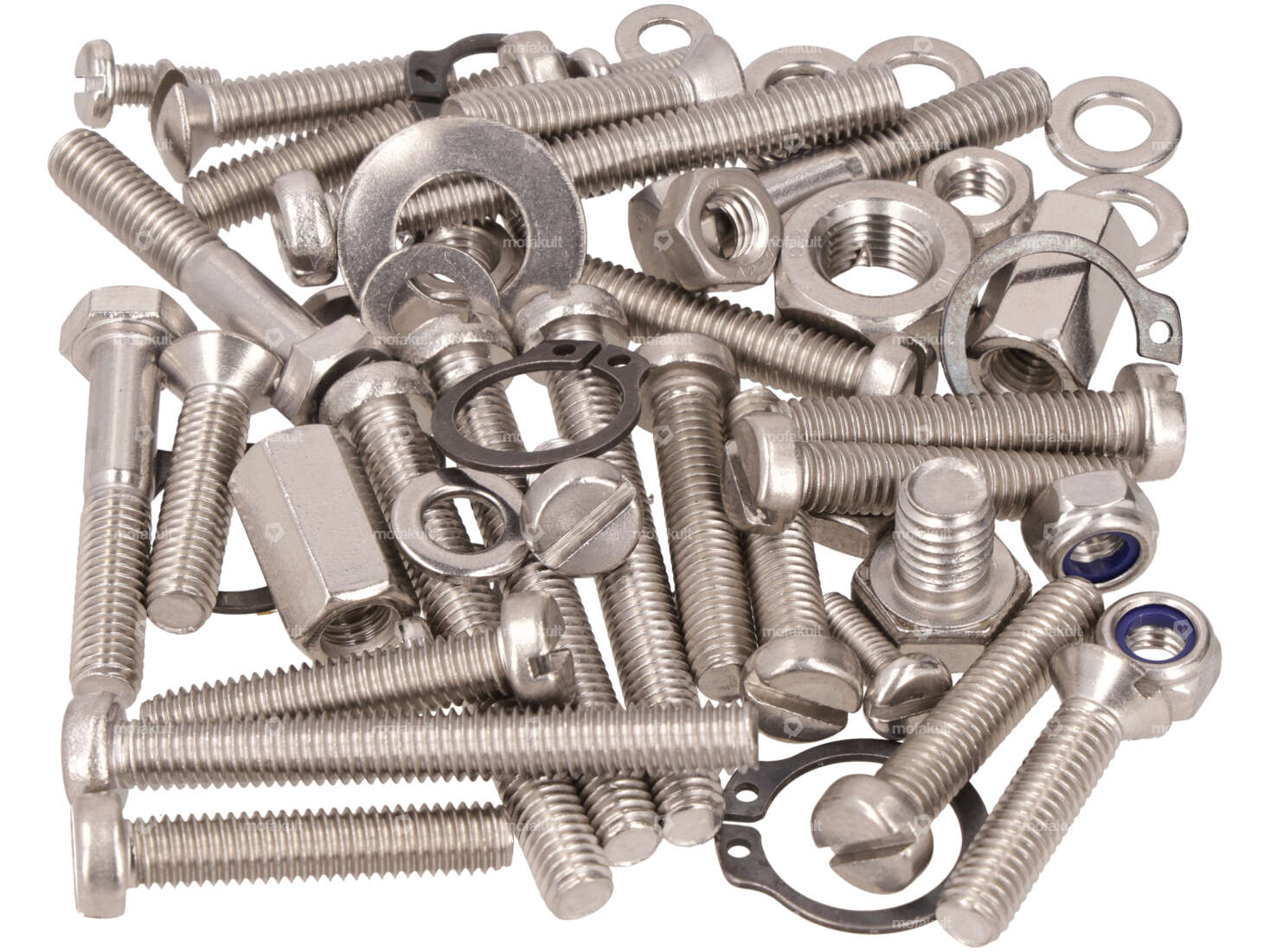

swiing® revival screw set Motor E50 Inox | Puch Maxi

swiing® ingenious clutch springs reinforced (+20%) (Version 2.0) | Puch E50

Spring design: Pressure spring · Ø wire: 1.7 mm · Ø inside: 4.8 mm · Ø outside: 8.3 mm · Total length: 28 mm · Color: blue · Manufacturer: swiing® ingenious parts · Number of components: 3 pcs · Material: Spring steel · Surface: coated · Area of application: Tuning

Large outlet seal with metal ring

Material: Sealing carton · Material: Sheet metal (steel) · Place of use: Outlet · Thickness: 2.1 mm · Reinforced: Yes · Ø outlet inside: 27 mm · Hole spacing outlet: 42.5 mm · Ø screw holder: 6.3 mm · Area of application: Tuning

GPO gasket set | Puch E50

Manufacturer: GPO · Material: Aluminum · Material: Fiber · Material: Sealing carton · Material: Sealing paper · Number of components: 7 pcs · Hole spacing inlet: 32 - 38 mm · Ø outlet inside: 19.9 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 · Decompressor: Yes · Area of application: Standard

swiing® revival engine revision set (new model) | Puch E50

Manufacturer: swiing® revival parts · Number of components: 7 pcs · Area of application: Tuning

swiing® revival M8x12 oil drain plug & copper ring | Puch E50, Z50

Manufacturer: swiing® revival parts · Material: Copper · Material: Steel · Surface: galvanized (blue) · Color: silver · Thread type: M8x1.25 (standard thread) · Thread length: 12 mm · Screw head: Hexagon · Drive: External hexagon · Drive: Slot · Width across flats Screw: 13 mm · Total length: 18 mm · Puch OEM number: 901.1053

swiing® revival plain bearing clutch basket | Puch E50

Ø inside: 15 mm · Nominal diameter inside: 15 mm · Ø outside: 17 mm · Total height: 21.75 mm · Manufacturer: swiing® revival parts · Material: special bearing bronze

Motorex Automatic Motor Oil (ATF) 450 ml

Manufacturer: Motorex · Area of application: Gearbox lubrication with clutch · Contents [ml]: 450 ml · Gearbox type: Automatic machine · Temperature resistance (min.): -45 - 200 °C · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

swiing® revival stud bolt set M6 x 106 mm | Puch

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 5.9 mm · Thread type: M6x1 (standard thread) · Total length: 106 mm · Thread length: 13 mm · Thread length: 18.5 mm · Width across flats SW: 10 mm · Drive: External hexagon · Alternative version of the Puch OEM number: 360.1.10.034.1

swiing® revival gasket gearbox cover engine 1 mm | Puch E50

Manufacturer: swiing® revival parts · Material: Sealing paper · Color: sand-colored · Number of components: 1 pcs · Thickness: 1 mm · Ø inside: 106 mm · Ø outside: 116 mm · Number of fixing points: 4 pcs · Alternative version of the Puch OEM number: 349.1.10.349.1

swiing® ingenious crankshaft High End with mounted bearings (Version 2.0) | Puch E50

Manufacturer: swiing® ingenious parts · Material: Aluminum · Material: Steel · Cheek type: Full cheeks · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread type: MF10x1 (fine pitch thread) · Thread length: 11 mm · Thread length: 15 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Weight: 968 g · Number of gears: 1 pcs · Area of application: High End · Area of application: Racing · Area of application: Tuning
