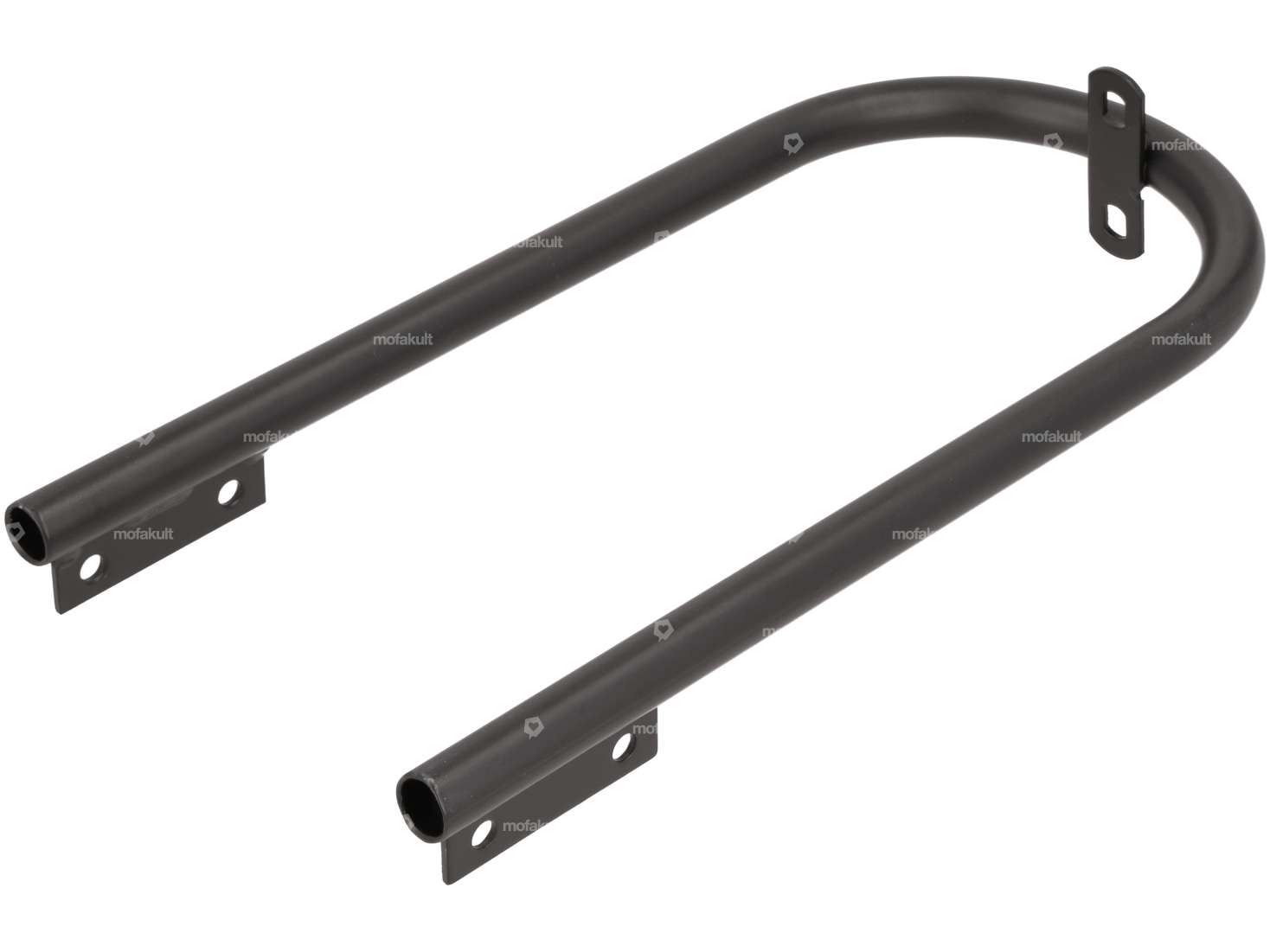

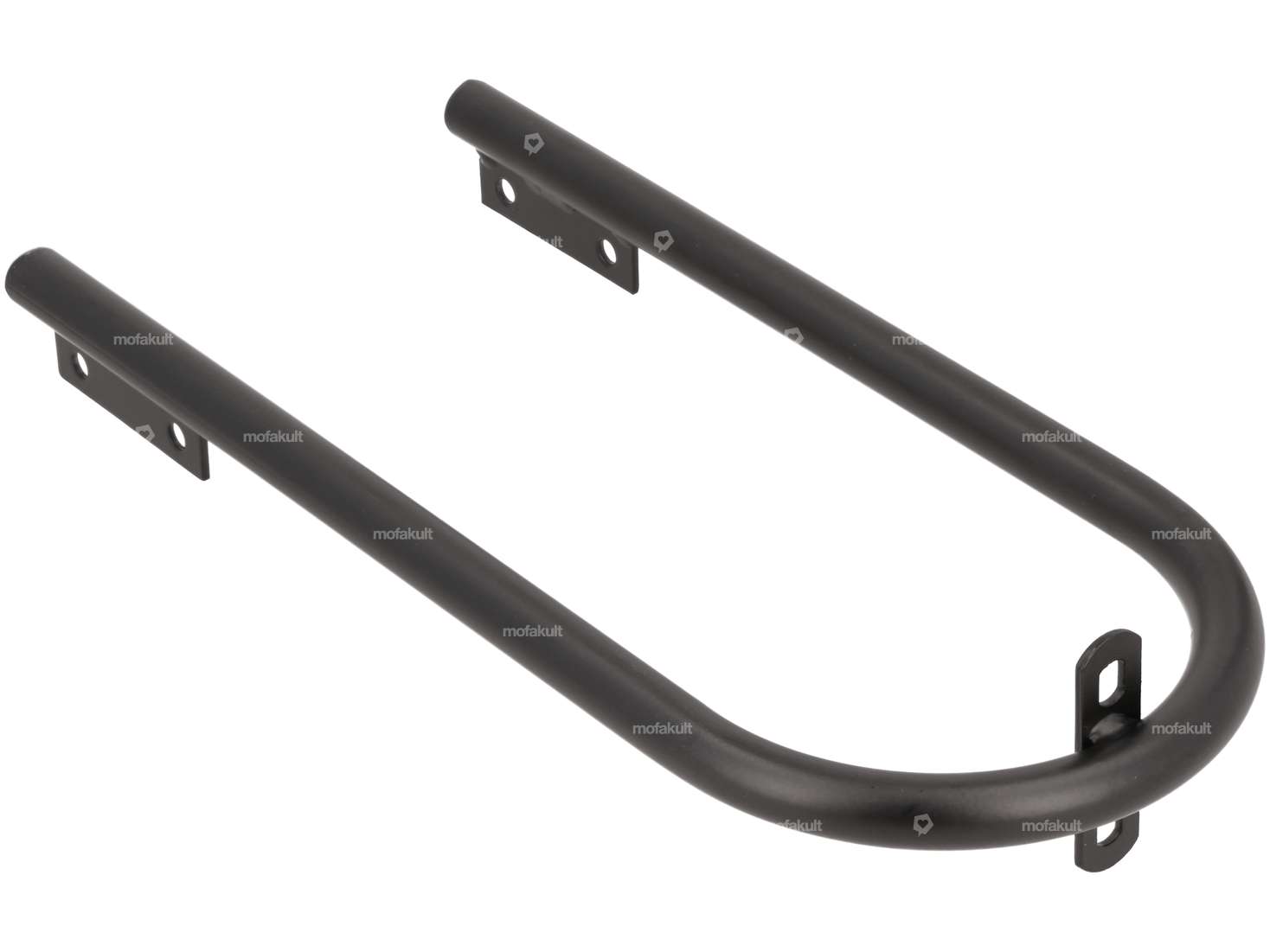

Black-coated reinforcing bracket for the front fork and for attaching the front mudguard to your moped, moped and small motorcycle.
Fits various forks with tabs for the mudguard mount. Figures 2 & 3 show the mounted pipe bend for illustration purposes (chrome version).
Compared to the cheaper version, this mounting bracket is of the highest quality.
The mounting bracket for the mudguard has the correct angle so that 17-inch mudguards can be fitted precisely.
In addition, the tube diameter is 14 mm and therefore identical to the original.
Total height of arch: 270 mm
Width (outer edges of flat bar): 115 mm
Hole spacing of side holes: 35 mm
Ø hole: 5.9 mm
Nostalgic product for the highest demands of the quality brand swiing®.
Details
| Total length | 270 mm |
| Manufacturer | swiing® revival parts |
| Outer width | 130 mm |
| Material | Steel |
| Surface | varnished |
| Wheel size [inch] | 17 " |
| Ø mounting hole | 5.9 mm, 6.3 mm |
| Color | black |
| Distance mudguard - center hole | 212 mm, 247 mm |
| Mounting type | Nuts & bolts |
| Hole spacing | 35 mm |
| Wide intake | 115 mm |
| Number of fixing points | 6 pcs |
Suitable for the following models
| Puch |
