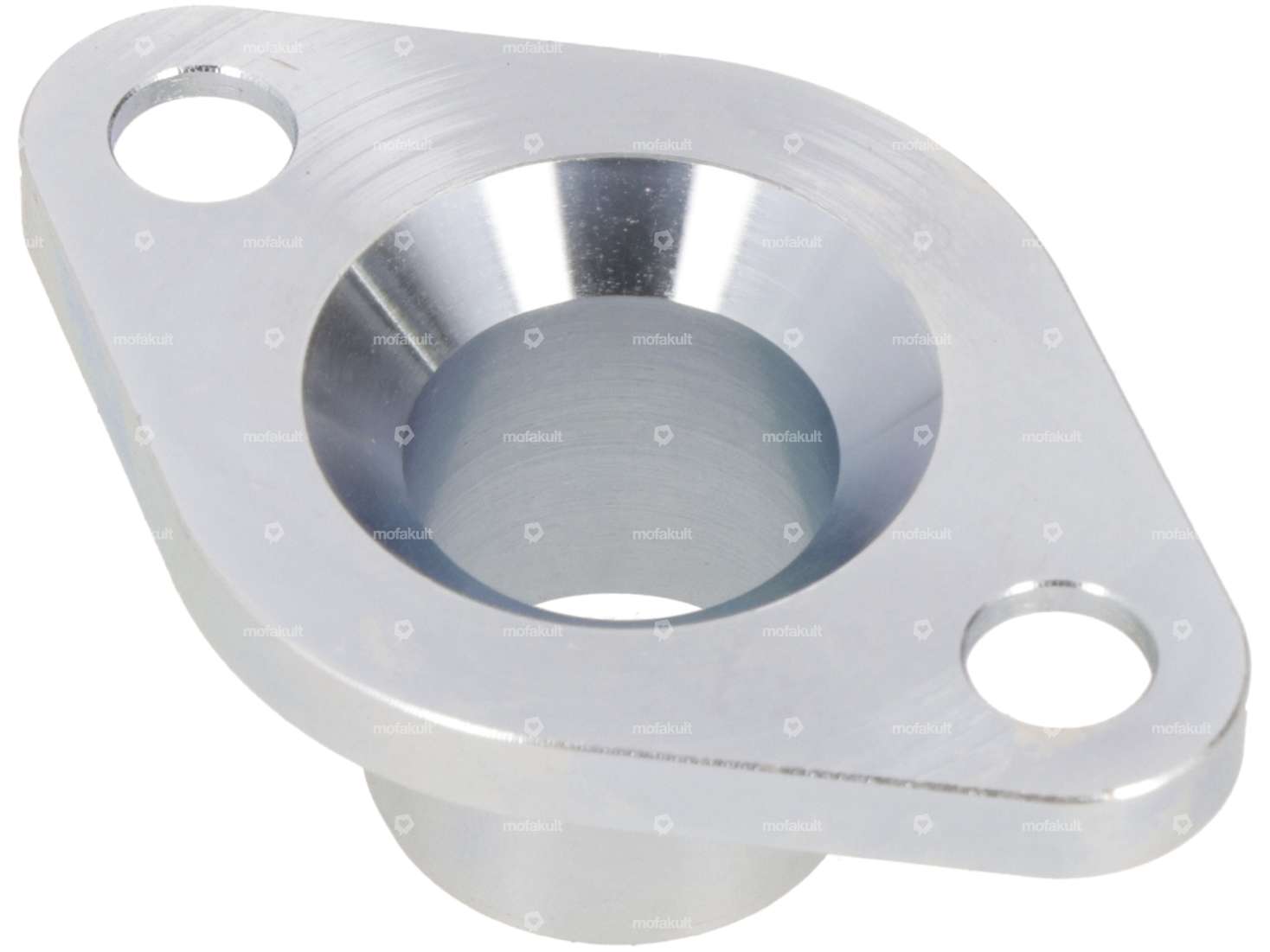

CNC machined exhaust adapter made of galvanized steel, suitable for the Athena cylinder on your moped / moped with Sachs 504, 505 or 508 engine.

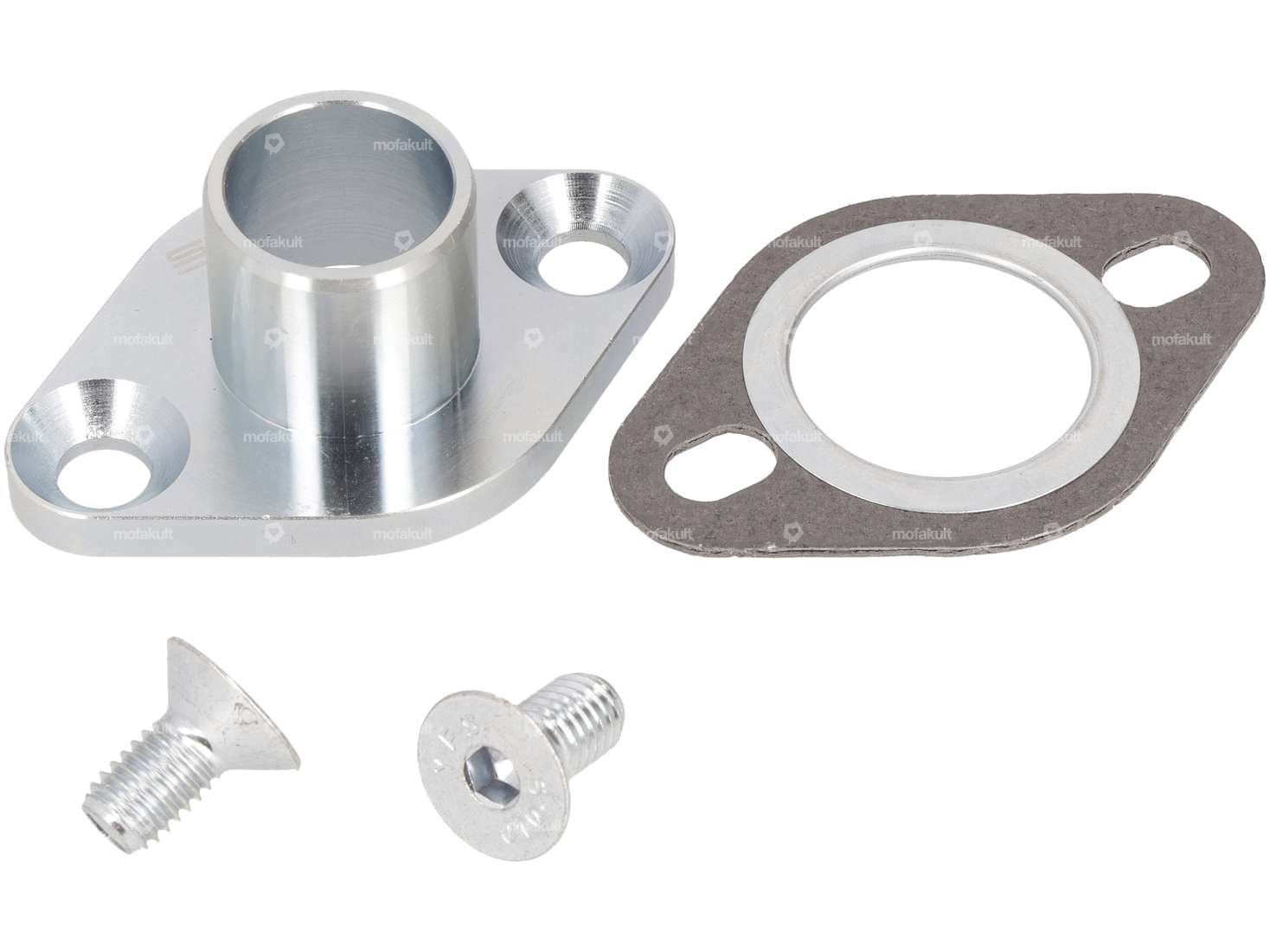

As is well known, the Athena exhaust flange included in the cylinder set can only be fitted with laborious adjustments due to incorrect holes and a missing seal. The swiing® exhaust adapter is supplied with a gasket and the matching countersunk screws and solves this problem without any adjustment work.
Details
| Total length | 67 mm |
| Width | 43 mm |
| Manufacturer | swiing® ingenious parts |
| Material | Steel |
| Surface | galvanized (blue) |
| Ø inside | 20 mm |
| Ø outside | 24 mm |
| Ø mounting hole | 8.3 mm |
| Height | 25.5 mm |
| Hole spacing | 50 mm |
Suitable for the following models
| Sachs | 50/4 505 (with pedal shaft) - 1A (AT), 2A (HG) 508 - 1 A 535 |
| Hercules |
Accessories & related products
Athena 38 mm cylinder kit without mounting parts | Sachs (504), 505, 508
Nominal diameter: 38 mm · Manufacturer: Athena · Material: Aluminum · Surface: sandblasted · Displacement: 50 ccm · Crankshaft stroke: 44 mm · Ø cylinder neck: 51.7 mm · Ø outlet inside: 28.3 mm · Inlet window: 23.6 x 12.8 / 16.5 · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 32 mm · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 50 mm · Thread outlet: M8x1.25 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 56/61 x 56 · Decompressor: M10x1.5 · Camouflaged: No · Area of application: Tuning
EUR 328.60
Athena 45 mm cylinder kit incl. mounting parts | Sachs (504), 505, 508
Nominal diameter: 45 mm · Manufacturer: Athena · Material: Aluminum · Surface: sandblasted · Crankshaft stroke: 44 mm · Ø cylinder neck: 51.7 mm · Ø Outlet outside: 25.9 mm · Ø outlet inside: 19.5 mm · Ø Inlet inside: 14.3 mm · Inlet window: 23.4 x 12.6 · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 31.5 mm · Ø piston pin (B): 12 mm · Outlet type: clamped · Outlet type: straight · Hole spacing outlet: 50 mm · Thread outlet: M8x1.25 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 56 (61) x 56 · Decompressor: M10x1.5 · Camouflaged: No · Area of application: Tuning
EUR 352.10
Athena 48 mm cylinder kit incl. diaphragm | Sachs (504), 505, 508
Nominal diameter: 48 mm · Manufacturer: Athena · Material: Aluminum · Surface: sandblasted · Crankshaft stroke: 44 mm · Ø cylinder neck: 51.8 mm · Ø Outlet outside: 26 mm · Ø outlet inside: 19.4 mm · Ø Inlet inside: 14.7 mm · Ø Inlet inside: 17.8 mm · Inlet window: 31.9 x 36.2 · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 32.5 mm · Ø piston pin (B): 12 mm · Outlet type: clamped · Outlet type: straight · Hole spacing outlet: 50 mm · Thread outlet: M8x1.25 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 56/60 x 56 · Decompressor: M10x1.5 · Camouflaged: No · Area of application: Tuning
EUR 352.10
Athena piston 45 mm #A | Sachs 504, 505
Manufacturer: Athena · Nominal diameter: 45 mm · Ø outside piston (A): 44.92 mm · Ø piston pin (B): 12 mm · Compression height (C): 28.2 mm · Total piston height (E): 45.2 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Tolerance group: A · Piston weight: 98 g
EUR 82.10
M8x16 countersunk Allen screw, galvanized (strength 10.9)
Material: Steel · Surface: galvanized (blue) · Thread type: M8x1.25 (standard thread) · Drive: Hexagon socket · Screw head: Countersunk head · Ø External head: 16 mm · Total length: 16 mm · Width across flats SW: 5 mm · Shank: No · Thread length: 10 mm · Strength class: 10.9
EUR 2.10
swiing ingenious exhaust adapter 26 mm Athena cylinder| Sachs 504, 505, 508
Manufacturer: swiing® ingenious parts · Material: Steel · Surface: galvanized (blue) · Ø inside: 22 mm · Ø outside: 26 mm · Total length: 67 mm · Height: 25.5 mm · Width: 43 mm · Hole spacing: 50 mm · Ø mounting hole: 8.3 mm
EUR 29.20
