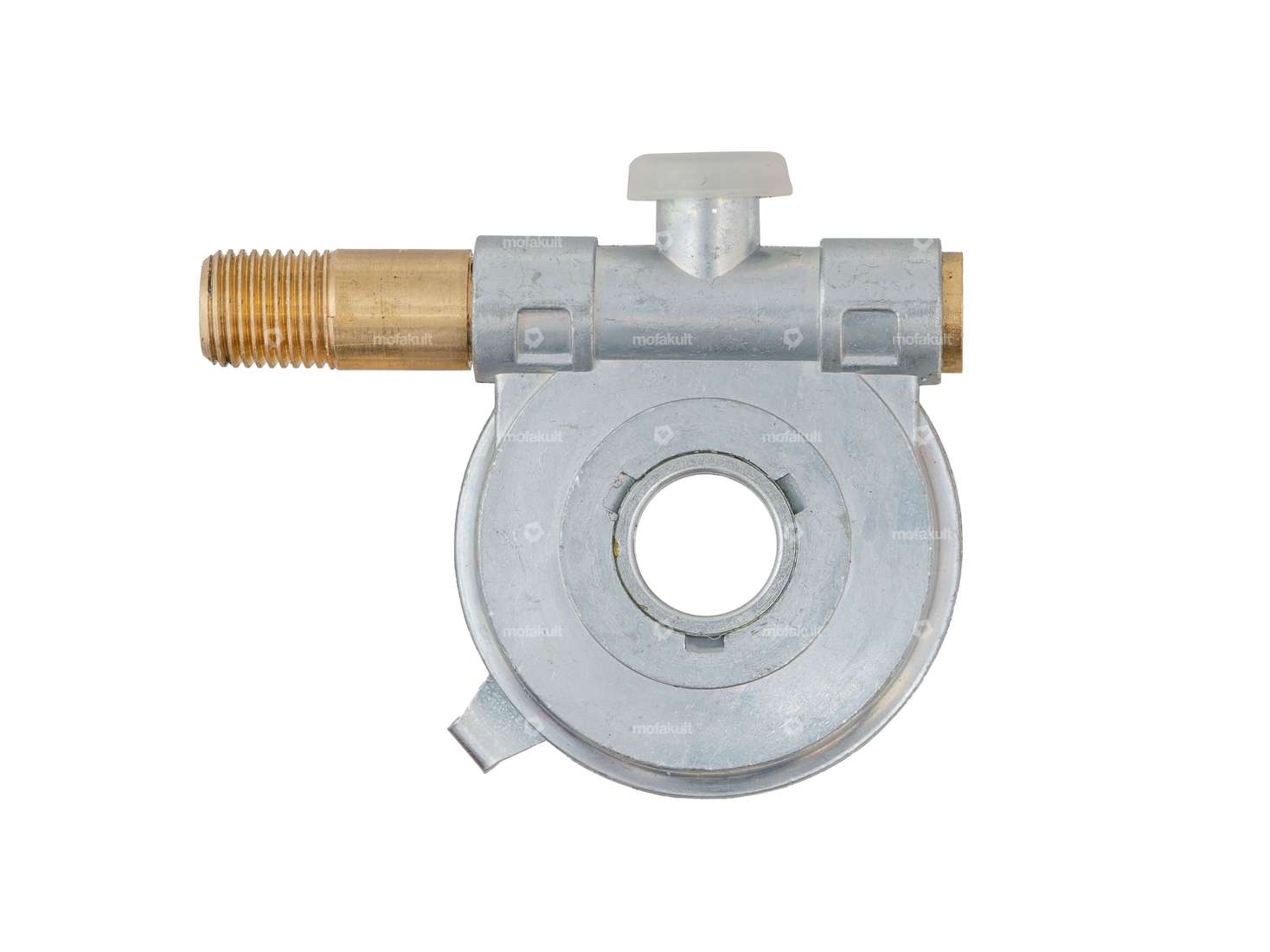

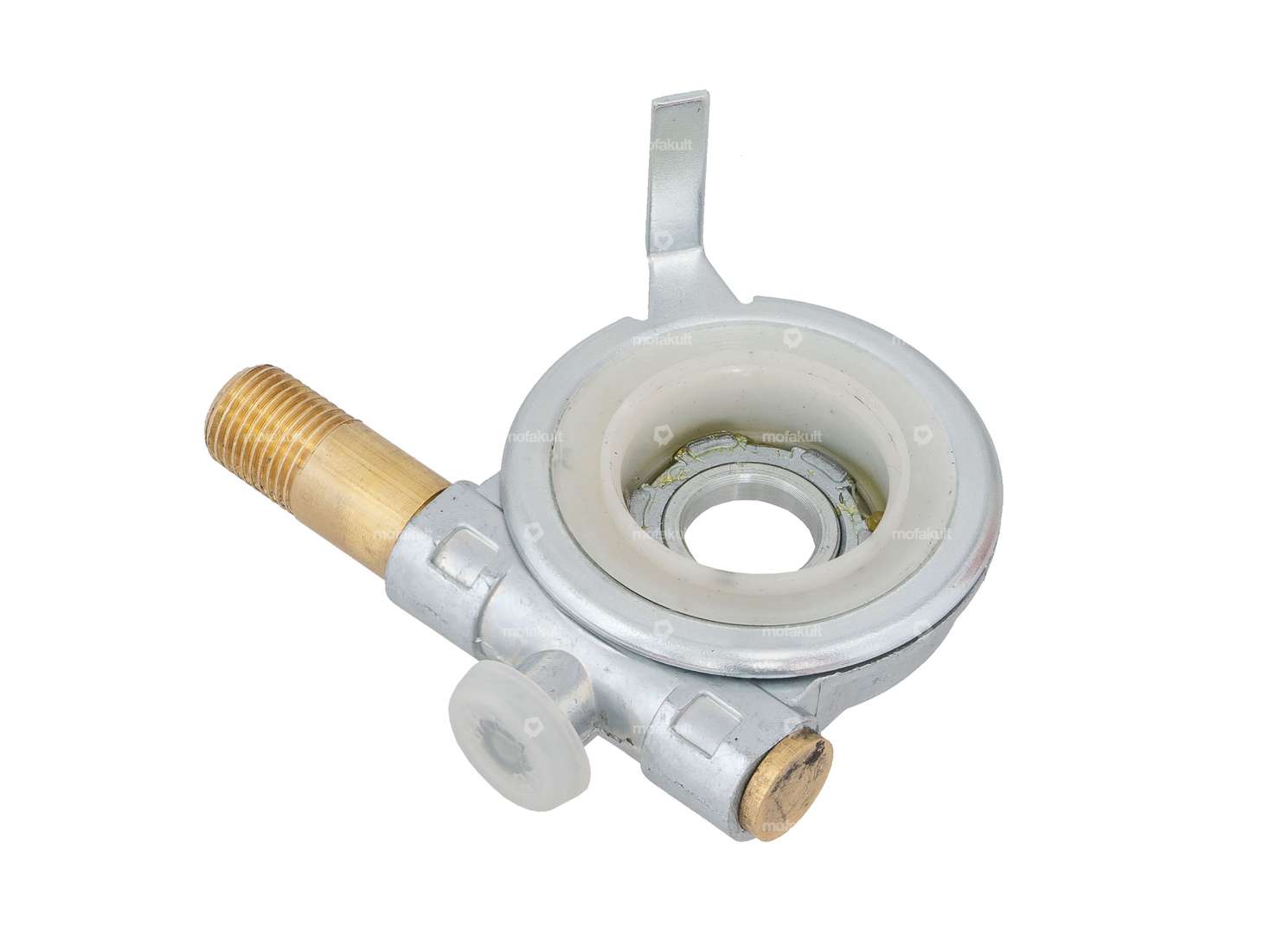

Drive for the speedometer head of your moped / moped or small motorcycle with 20 inch rims.
The drive worm was originally designed for Piaggio models, but the gear ratio is for 20" rims.
With the appropriate speedometer cable, however, it can be used universally.
The speedometer drive is mounted on the left side of the front wheel and has a bracket for mounting and locking.
The housing is made of cast aluminum.
Ø Bore for axle: 11.3 mm (can be drilled out if required)
Type of speedometer cable: MF10x1 plug & screw
Internal 4-ct. speedometer cable: 2.6 mm
Ø total: 42.3 mm
Matching speedometer cables, speedometer cable mounts, speedometers and speedometer brackets can be found in the accessories section.
Details
| Material | Aluminum |
| Place of use | left |
| Wheel size [inch] | 17 " |
| Ø outside | 42.3 mm |
| 4-edge speedometer cable | 2.6 mm |
| Ø axle | 11 mm |
| Ø mounting hole | 11.3 mm |
| Thread type | MF10x1 (fine pitch thread) |
