Pinasco «Master» engine case with crankshaft (46 mm stroke / 12 mm KoBo) and normal intake suitable for your Piaggio Ciao, Si, Bravo, Boxer, Grillo moped / moped.
The Pinasco «Power Casing» engine case is supplied with a specially developed crankshaft, which has a wide cheek for controlling the intake. A standard 13 mm Dellorto SHA carburettor can be fitted to the rear of this case.

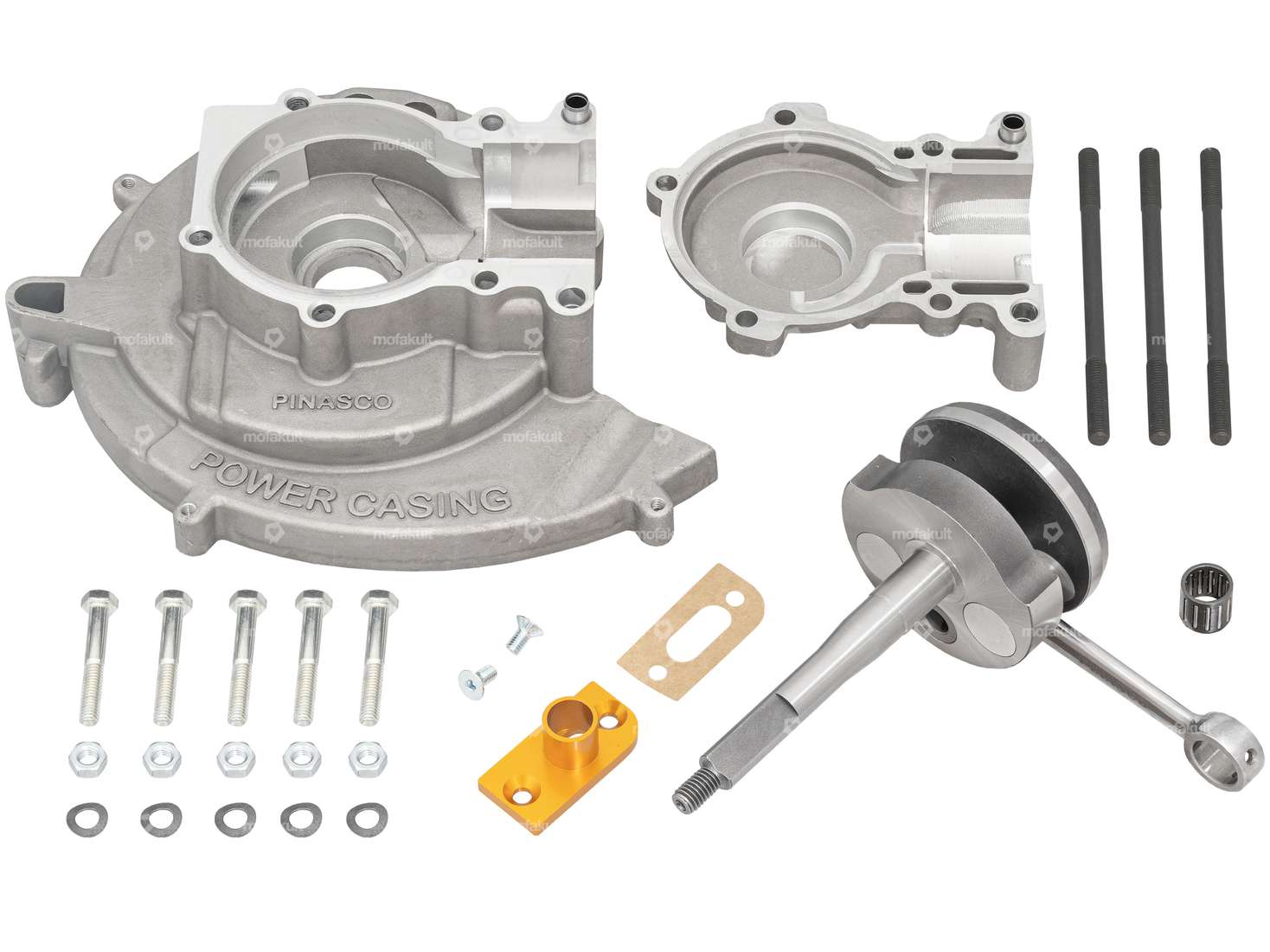

The following parts are included in the scope of delivery:
- Rear intake flange (connection diameter: 16 mm, Ø inside: 13 mm)
- Cylinder studs

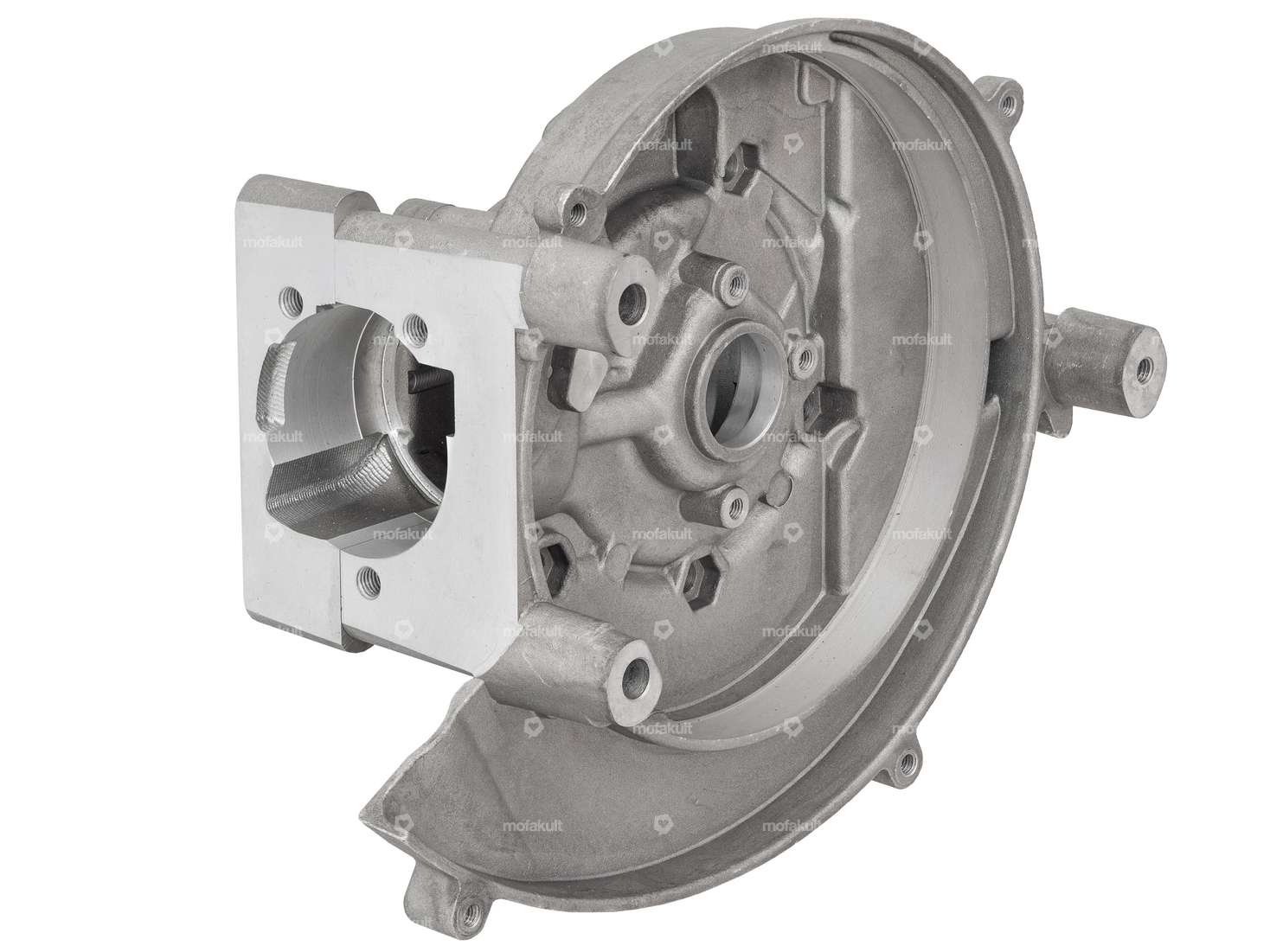

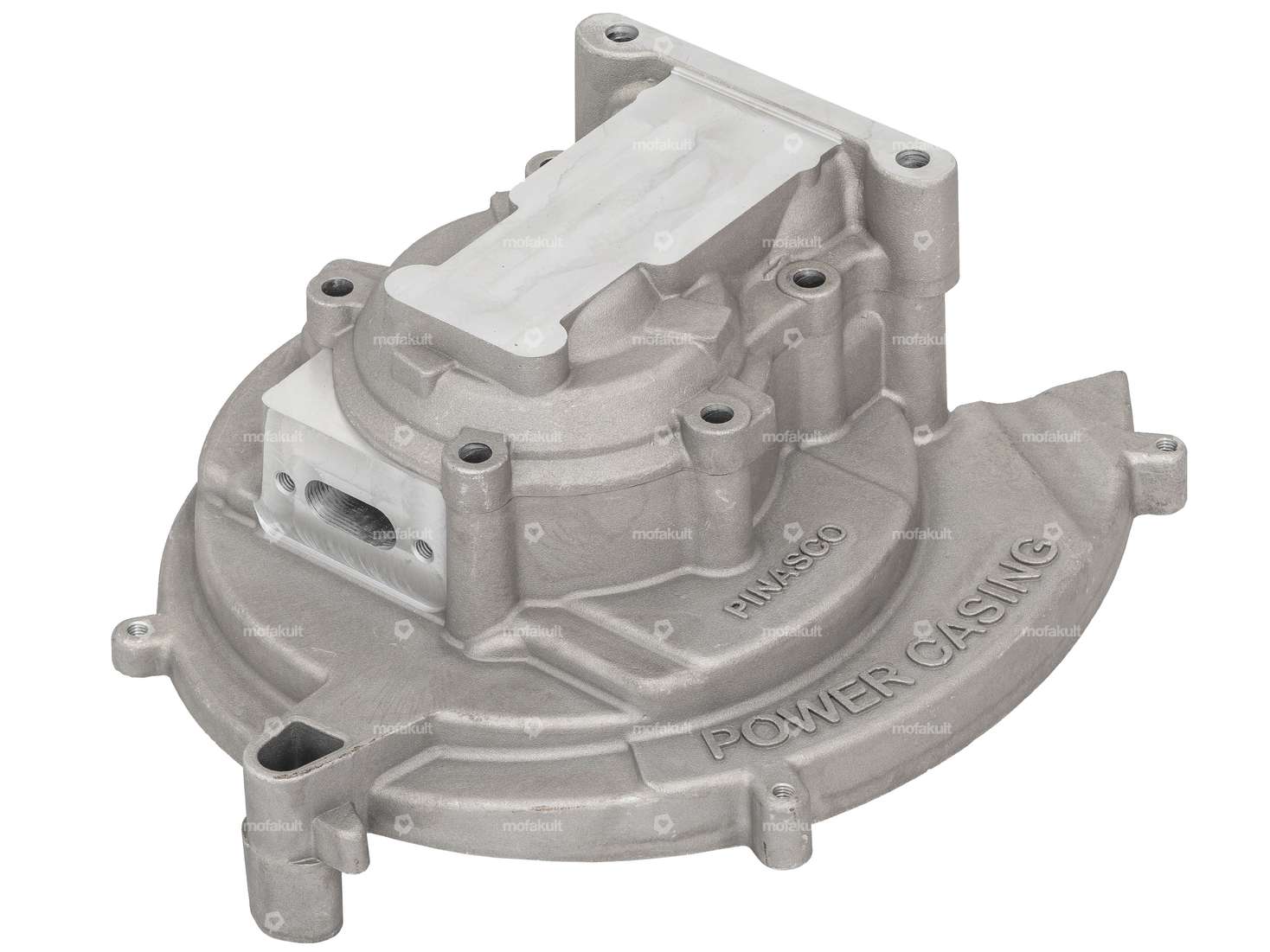

- Engine housing (Ø for cylinder necks up to 50.7 mm)
- Engine housing screws

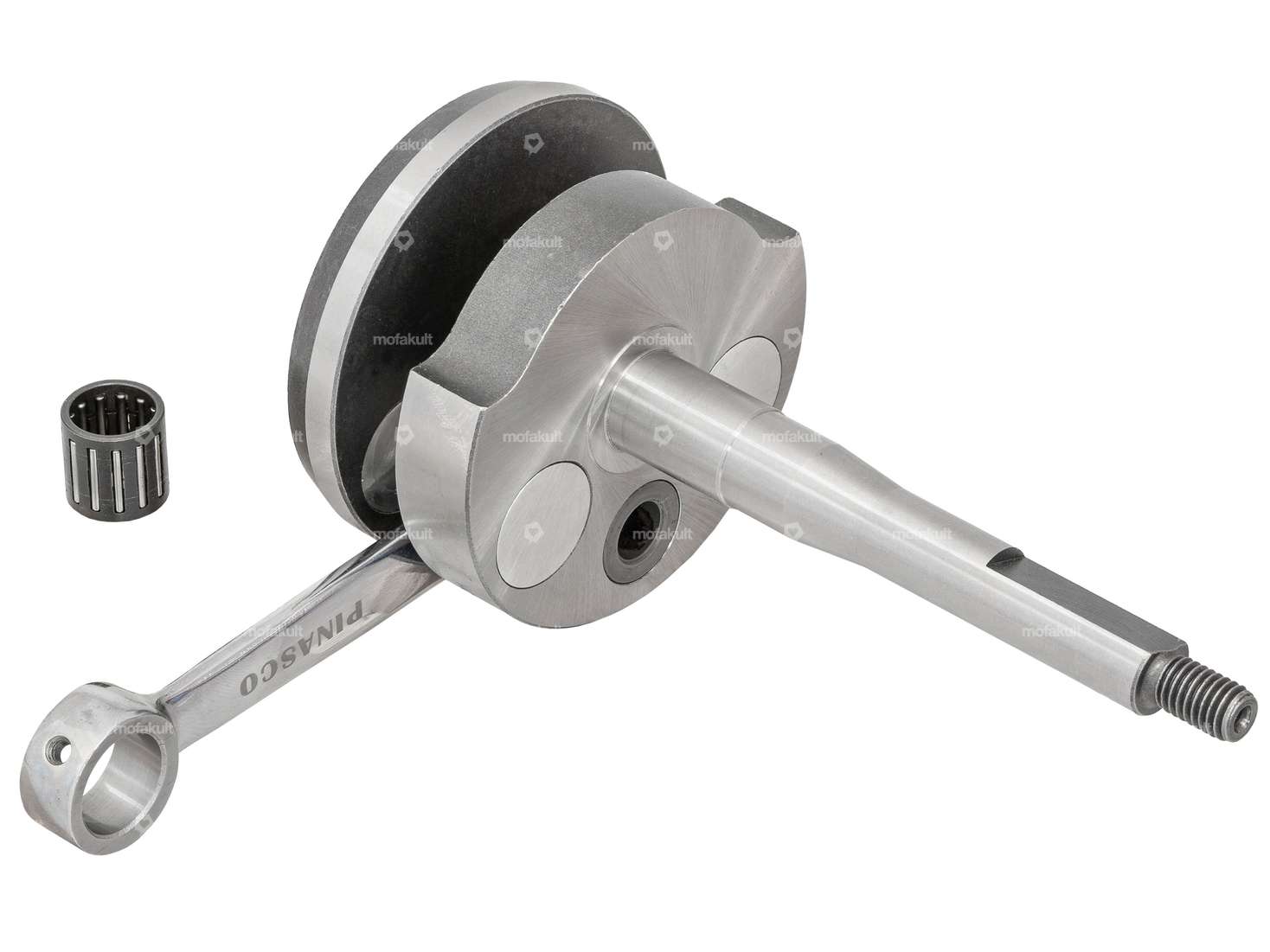

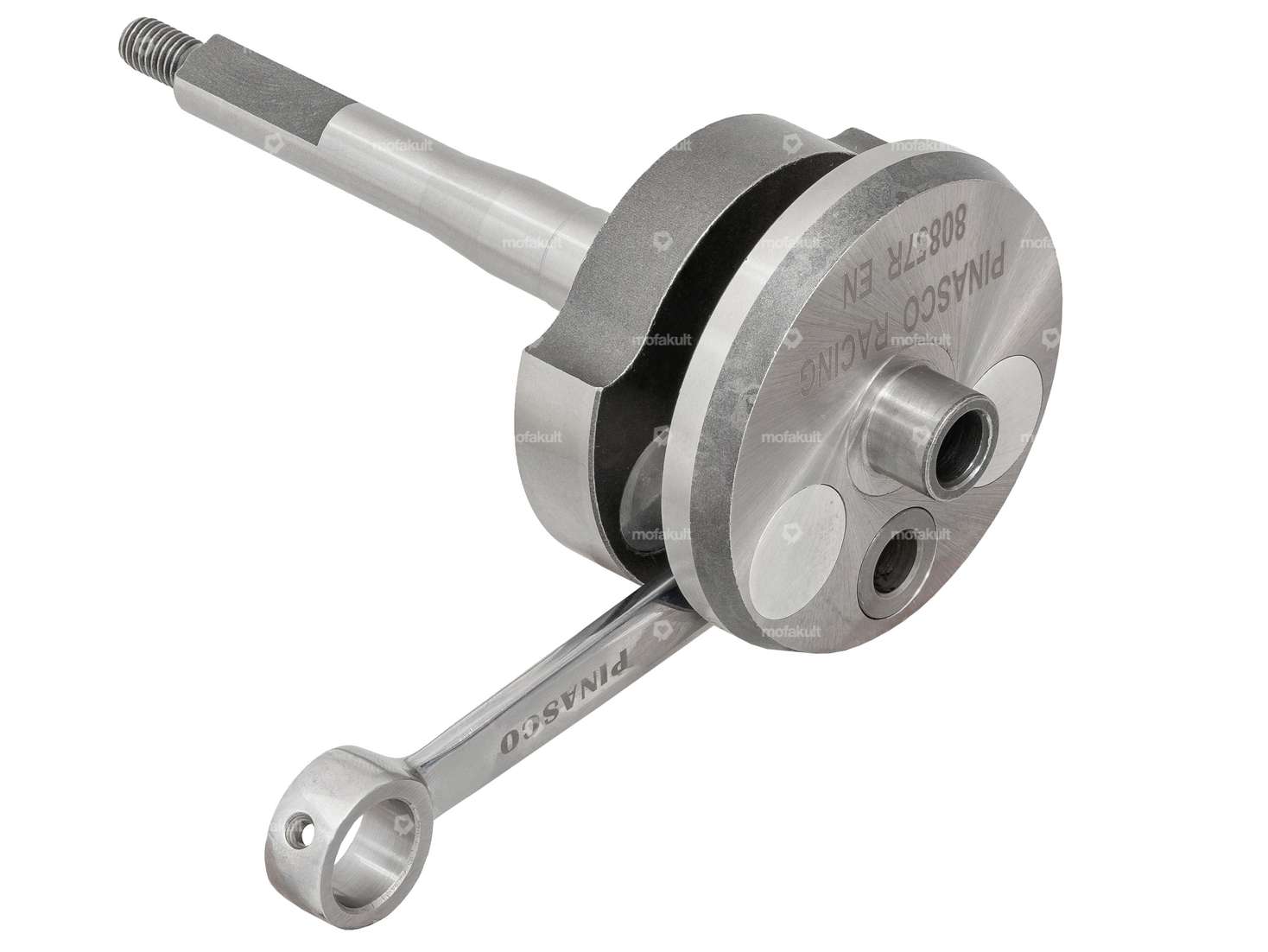

- Crankshaft Pinasco Competition with 46 mm stroke and 12 mm piston pin (axe 12)
- Installation instructions in English & Italian
No housing seal is supplied. Sealing compound is used for sealing.
We recommend using the 46 mm Pinasco cylinder kit for this racing gear. In addition, only electronic ignitions can be fitted to this housing.
Installation instructions:
- When using the crankshaft with 46 mm stroke, the housing must be slightly recessed inside so that the connecting rod does not protrude
- The cylinder must be raised by approx. 1.5 mm due to the higher stroke. We recommend checking the crushing edge before commissioning. This should be 0.8 - 1.0 mm.
- If the engine is installed in a Piaggio Ciao frame, some material must be removed from the right-hand side of the housing and cylinder. This process is described in the assembly instructions.
Corresponding add-on parts such as sealant, racing kit, racing ignition etc. can be found in the accessories section.
Quality product from the Italian manufacturer Pinasco.
Details
| Manufacturer | Pinasco |
| Material | Aluminum |
| Crankshaft stroke | 46 mm |
| Ignition type | Electronic |
Suitable for the following models
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
Accessories & related products
Malossi racing ignition 12V | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Malossi · Material: Steel · Light coil voltage: 12 V · Performance: 90 W · Direction of rotation: right · Ø Internal flywheel: 80.5 mm · Ø Flywheel outside: 105 mm · Ø Flywheel outside: 139.5 mm · Ø cable: 7 mm · Mounting type: Screws · Number of fixing points: 2 pcs · Weight: 804 g · Weight: 890 g · Area of application: High End · Area of application: Performance · Area of application: Racing · Area of application: Tuning
EUR 473.80
SKF 6202 C3 ball bearing 15/35/11
Bearing cage: "-" Sheet steel cage ball-guided · Inner ring width: 11 mm · Manufacturer: SKF · Bearing clearance: C3 · Bearing type: Deep groove ball bearing · Width: 11 mm · Stock number: 6202 · Ø outside: 35 mm · Ø inside: 15 mm · Puch OEM number: 900.4.6202
EUR 11.70
Elring Dirko HT sealing compound gray (silicone) 70 ml permanently elastic up to 315°C
Temperature resistance (min.): -60 - 315 °C · Manufacturer: Elring · Material: Silicone · Contents [ml]: 70 ml · Color: gray · Hazard warning: Causes damage to organs through prolonged or repeated exposure · Area of application: Chemistry · Gap dimension (max.): 2 mm
EUR 23.60
EUR 337.14/l
Dell'Orto 13/13 SHA carburetor hand choke | Piaggio Ciao P, SC
Nominal diameter: 13 mm · Manufacturer: Dell'Orto · Material: Aluminum · Camouflaged: No · Component group Carburetor: Carburetor complete · Color: black · Carburetor type: SHA (Piaggio) · Width: 60 mm · Choke control: Hand choke · Height: 110 mm · Total length: 55 mm · Area of application: Tuning · Ø fuel hose connection: 5.2 mm · Ø fuel hose connection: 6 mm · Ø Internal connection: 16 mm · Ø without reducing sleeve: 18 mm · Ø Inside entrance: 13 mm · Mounting type: Plug connection clamped · Ø Output inside: 13 mm · Ø Air filter connection: 50.9 mm · Mixed oil connection: No · Vacuum connection: No · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 66
EUR 82.80
Not in stock
Malossi oil seal FPM 15/24/5 A crankshaft | Piaggio Ciao, SI, Bravo, Boxer
Simmering type: A - With rubberized outer part / one sealing lip. · Manufacturer: Malossi · Material: FPM / FKM (known as VITON®) · Surface: rubberized · Width: 5 mm · Ø inside: 15 mm · Ø outside: 24 mm · Place of use: Crankshaft · Temperature resistance (min.): -30 - 200 °C
EUR 17.00

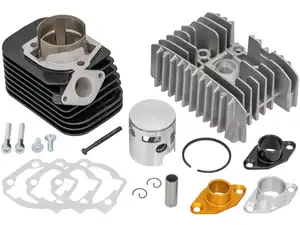

Pinasco 46 mm cylinder kit EVOTEN BIG 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
Nominal diameter: 46 mm · Manufacturer: Pinasco · Material: Aluminum · Surface: varnished · Displacement: 71 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 49.9 mm · Ø Outlet outside: 22.5 mm · Ø Outlet outside: 25 mm · Ø Outlet outside: 28 mm · Ø outlet inside: 18.5 mm · Ø outlet inside: 20.9 mm · Ø outlet inside: 24.4 mm · Ø piston pin (B): 12 mm · Outlet type: clamped · Outlet type: slanted · Hole spacing outlet: 47.5 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 3 pcs · Hole pattern [mm]: 55 x 34 · Decompressor: Yes · Camouflaged: No · Area of application: Tuning
EUR 497.50

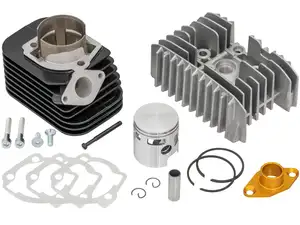

Pinasco 46 mm cylinder kit EVOTEN 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
