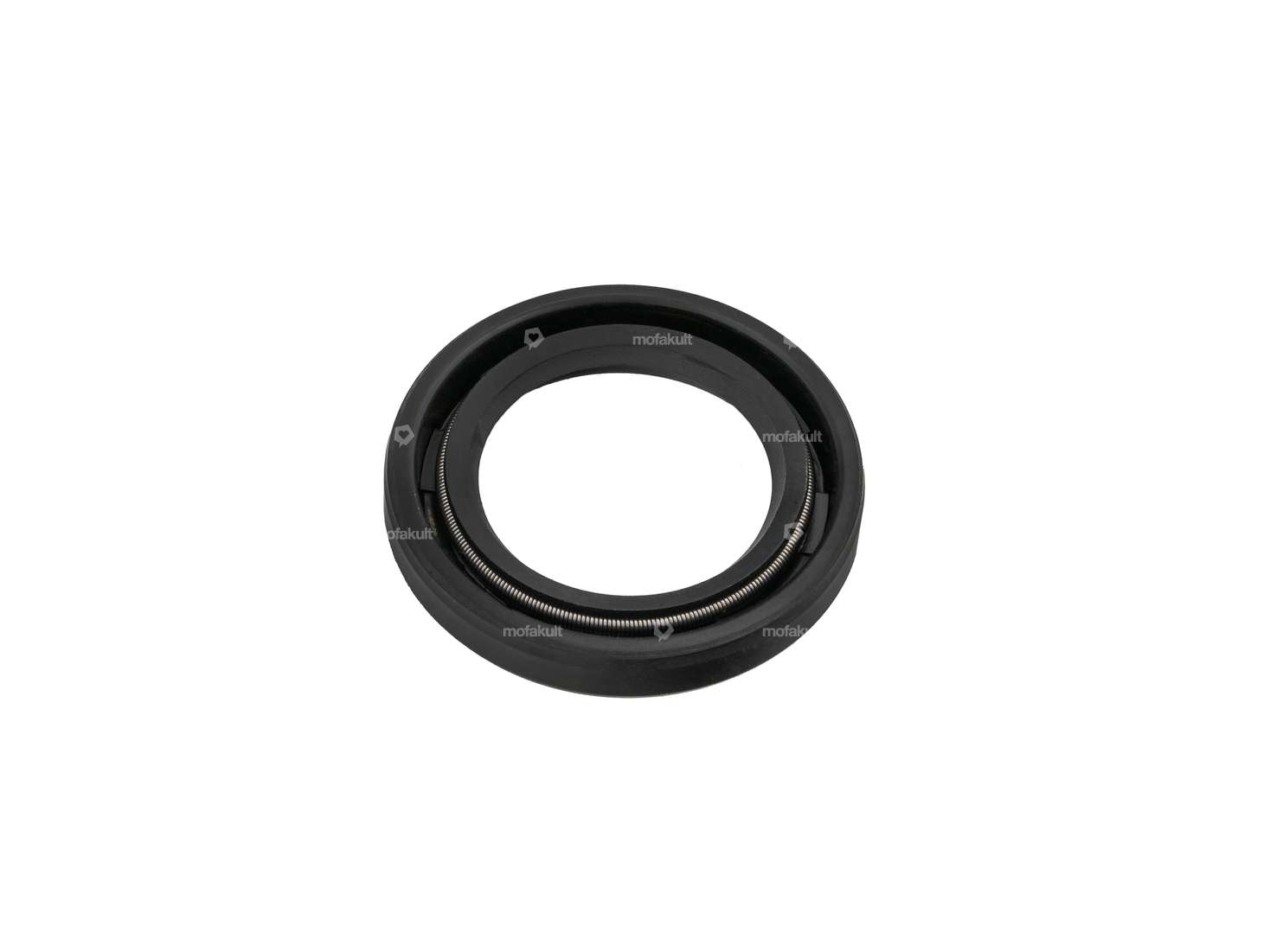

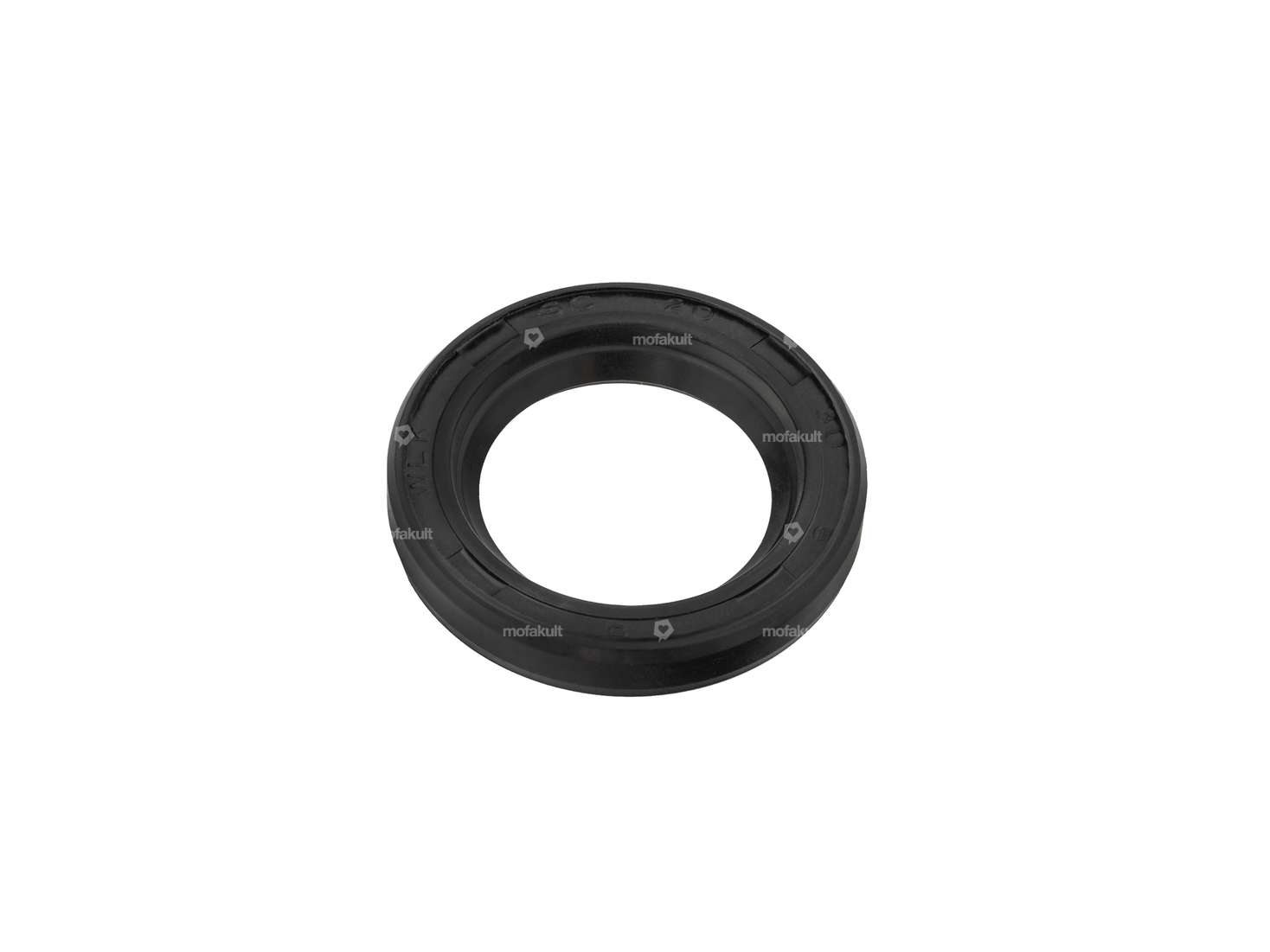

Shaft seal ring 20x30x5 mm for use on the gearbox of your Piaggio Ciao, Si, Bravo, Boxer moped / moped (Mono and Vario).
This radial shaft seal ring (also known by the popular brand name Simmerring®) is fitted in the gearbox on the brake pad side.
Ø inner: 20 mm
Ø outer: 30 mm
Width: 5 mm
Material: NBR
Temperature resistant: -30 to +100 °C, briefly up to 120 °C
Type: A - With rubberized outer casing and a sealing lip.
If you own the first Ciao model C9 with a rigid fork and a splined gearbox, you must install a 22x35x6 mm oil seal on the brake side.
You can find this and other parts for your Piaggio transmission in the accessories section.
Quality product from the Italian manufacturer Piaggio in original equipment quality.
Original Piaggio spare part number: 131511
Details
| Temperature resistance (min.) | -30 - 100 °C |
| Width | 5 mm |
| Simmering type | A - With rubberized outer part / one sealing lip. |
| Manufacturer | Piaggio |
| Material | NBR |
| Surface | rubberized |
| Ø inside | 20 mm |
| Ø outside | 30 mm |
Suitable for the following models
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
