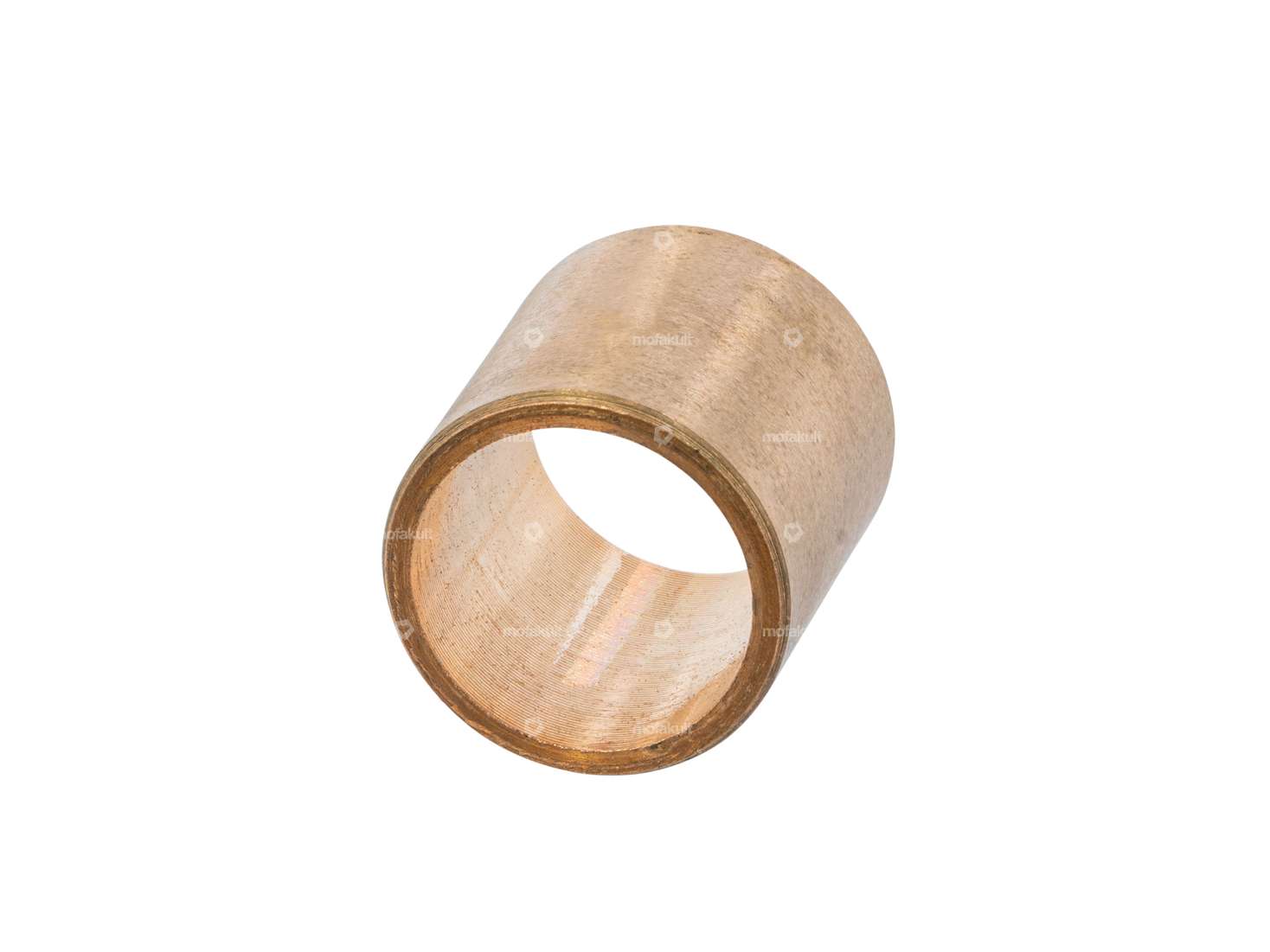

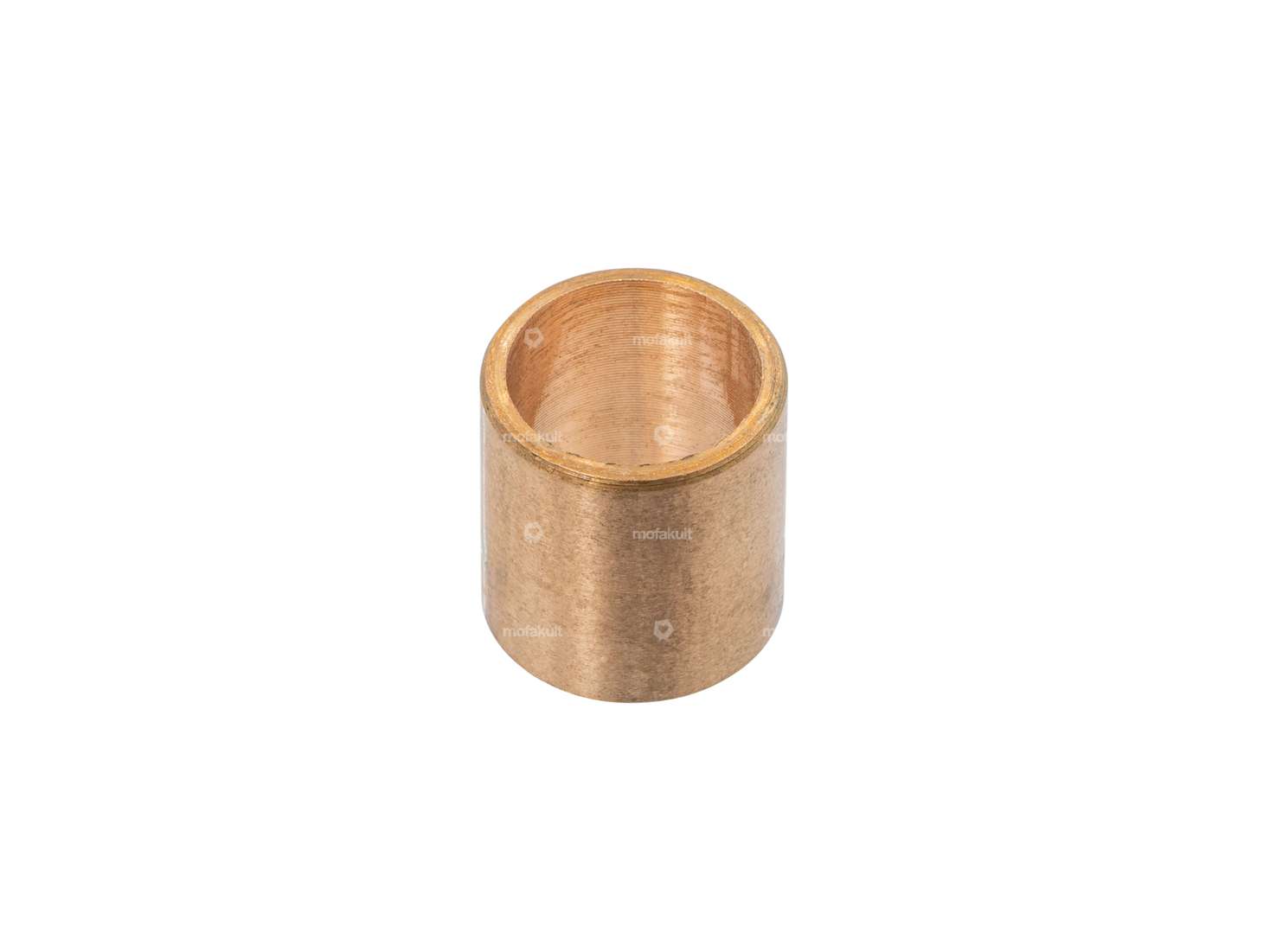

Original connecting rod bushes for Puch crankshafts with 10 mm piston pin.
Outer diameter: 12 mm
Nominal inner diameter: 10 mm
Ø Inner (raw): 9.9 mm
Length: 13 mm
Attention: To ensure a perfect fit of the piston pin, the bushing must be reamed to the correct size due to shrinkage after pressing in.
Suitable reamers can be found in the accessories section.
Details
| Manufacturer | Puch |
| Material | special bearing bronze |
| Nominal diameter inside | 10 mm |
| Ø inside | 10 mm |
| Ø outside | 12 mm |
| Total height | 13 mm |
Suitable for the following models
| Puch | Z50 (X30 Velux) 2-speed MS, MV, MV50 3-speed VSD, DS, VZ, MC |
